Stick gimbal base plate..

PreviousPreviousactiveNextNext

Next

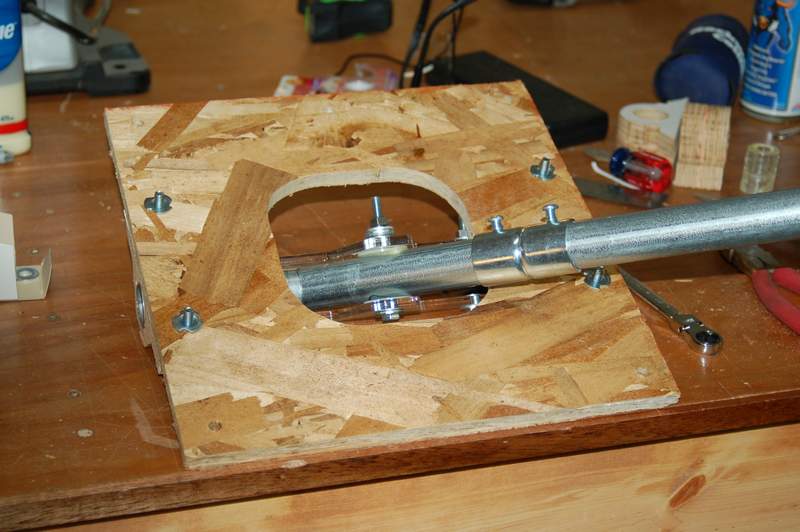

Test fitting to make sure the alignment was correct. I was a tiny bit off in drilling the bearing block mounting holes, so the pitch axis is a bit stiff. The bolts are temporaries - 1in. bolts will be used when assembled.
